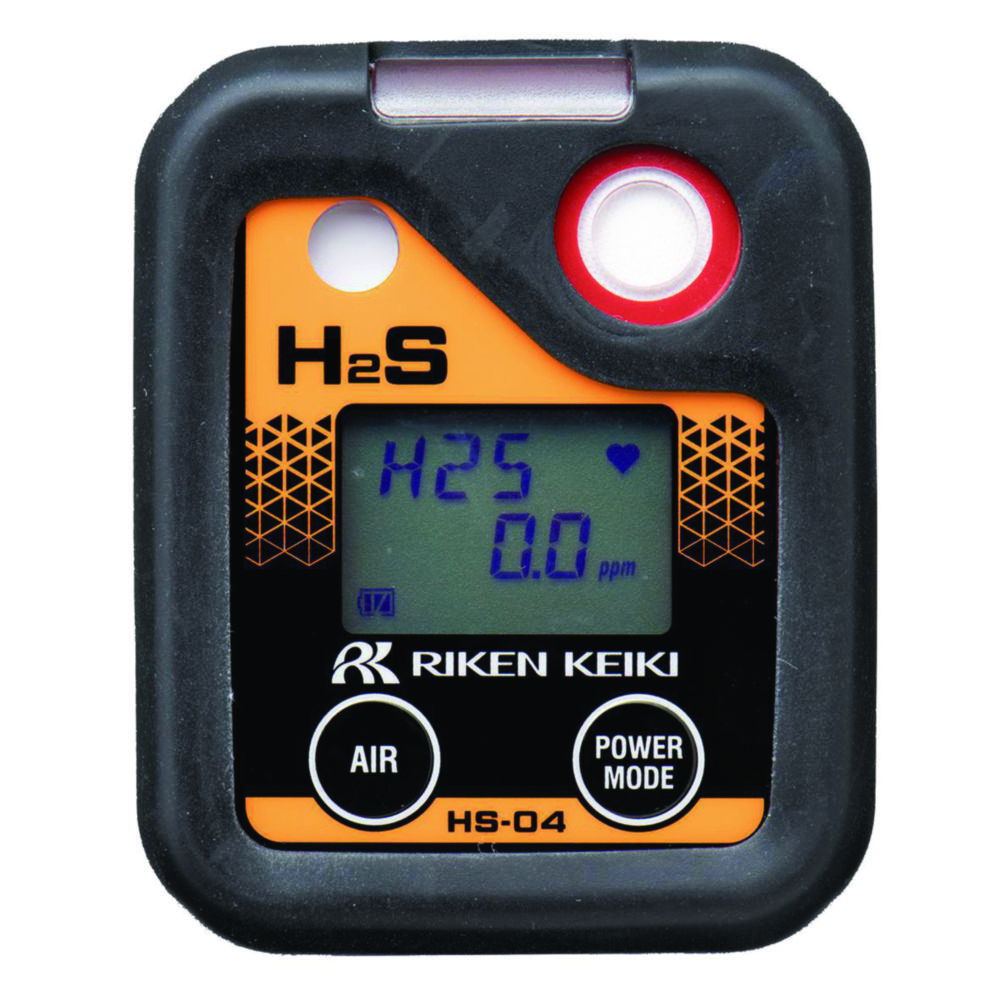

Portable gas detectors series 04
CHF 550.75*
Content:
1
Delivery according to order confirmation
Product number:
6317146
Manufacturer:
Riken Keiki GmbH
Packaging information:
Weight:
0.093 kg
Description
Portable gas monitors to detect gases in the surrounding atmosphere. They measure concentrations of toxic gases and oxygen in the atmosphere and issue an alarm when gas concentrations reach preset levels. The alarms are indicated by flashing lamp, intermittent audible buzzer, flashing gas concentration readout and vibration.
- LCD display
- R-sensor and CO-sensor with H2-reduction
- Robust construction
- Water- and dust-proof
- Battery or rechargeable battery operation
| Specifications | |
| Gas alarm: | STEL Alarm, TWA Alarm, Over |
| Alarm volume: | 80 db |
| Humidity: | 0 ... 95 % RH (OX-04G: 10 ... 90 % RH) |
| Detection principle: | Electrochemical type (OX-04G: galvanic cell type) |
| Dimensions (W x D x H): | 54 x 24 x 67 mm |
| Weight: | 93 g |
| Power supply: | 2 x AAA alkaline batteries, or 2 x AAA rechargeble batteries (Ni-MH) |
| Protection class: | IP 66/67 |
| Warranty (sensor): | 3 years (OX-04G: 1 year) |
Properties
| Description: | Ni-MH batteries, operation time approx. 6000 h |
|---|---|
| For: | Hydrogen sulfide |
| Manufacturer Article Number: | HS-04 51 |
| Measuring range: | 0 ... 30 ppm |
| Resolution: | 1 ppm |
| Temp. range °C: | -40 ... 60 |
| Type: | HS-04 |
